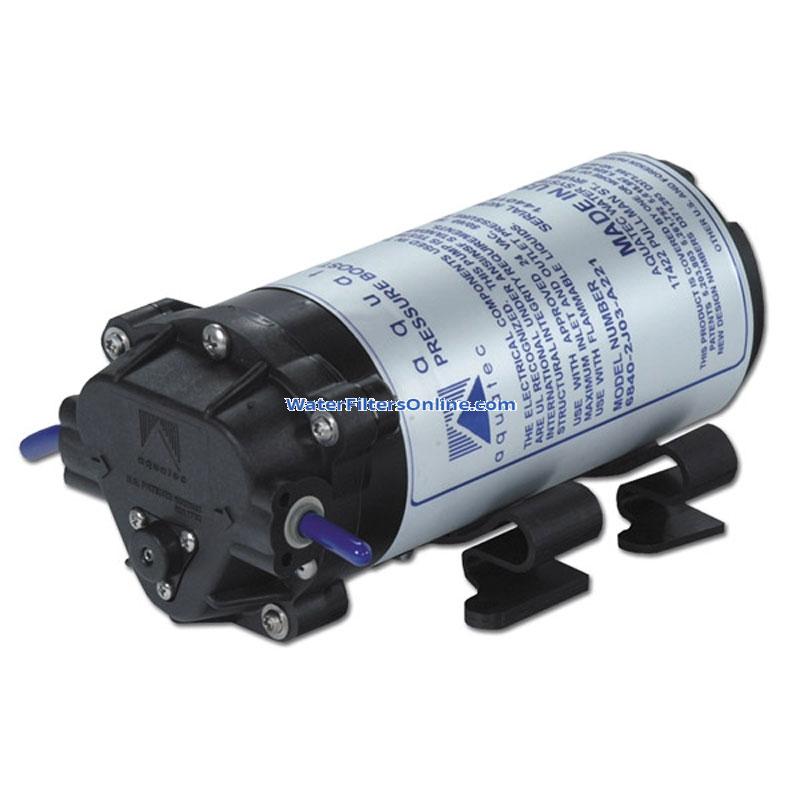

Aquatec ® CDP-6800 Booster Pump. 6800 Series (Low Flow). For membranes up to 50 GPD. 3/8" tube quick connectors built in. Order the optional reducers if you are using 1/4" O.D. tube. The CDP-6800 Series pumps are also compatible with most hydraulic shut-off valves with the optional PSW shut off tank controller switch. Distinguishing Features & Operating Benefits: Outstanding toughness, durability. Designed for 30,000+ operating hours. Adjustable pressure boost between 40-120 PSI. Outlet pressures up to 160 PSI. EMI/RFI electronic noise suppression. Extremely quiet operation, less than 45 DBA. Expels trapped air, eliminates air locks. Runs dry without damage. Pumphead can be mounted up or down. Self-priming, 60 inch lift. Improved venting system removes moisture. Low voltage (12-24VAC) for maximum safety. Corrosion resistant exterior. Technical Specifications: POWER: The CDP-6800 #6850-2J03-B221 Series pumps operate safely with low energy (24 watts), low voltage (12-24VAC) motors. They can be used with compatible transformers offered in the most popular worldwide voltages (100 VAC, 120 VAC, 230 VAC). All transformers are optional and must be ordered separately. PSW tank switches are optional and must be ordered separately also.

Aquatec ® CDP-8800 Booster Pump For RO Systems Over 50 GPD - CDP-8800 Series High Flow. 3/8" tube quick connectors built in. Order the optional reducers if you are using 1/4" O.D. tube. The CDP-8800 Series pumps are also compatible with most hydraulic shut-off valves with the optional PSW shut off tank controller switch. Distinguishing Features & Operating Benefits: Outstanding toughness, durability. Designed for 30,000+ operating hours. Adjustable pressure boost between 40-120 PSI. Outlet pressures up to 160 PSI. EMI/RFI electronic noise suppression. Extremely quiet operation, less than 45 DBA. Expels trapped air, eliminates air locks. Runs dry without damage. Pumphead can be mounted up or down. Self-priming, 60 inch lift. Improved venting system removes moisture. Low voltage (12-24VAC) for maximum safety. Corrosion resistant exterior. Technical Specifications: POWER: The CDP-8800 #8851-2J03-B424 Series pumps operate safely with low energy (24 watts), low voltage (12-24VAC) motors. They can be used with compatible transformers offered in the most popular worldwide voltages (120 VAC, 230 VAC). All transformers are optional and must be ordered separately. PSW tank switches are optional and must be ordered separately also.

Aquatec ® DDP-5800 Delivery Booster Pump - The DDP-5800 pumps can draw water from a holding tank and pressurize it, or boost the pressure from a low pressure source. They are designed to operate intermittently, but can run continuously for several hour intervals. The pump may be mounted in any position. 3/8" tube quick connectors built in. Order the optional reducers if you are using 1/4" O.D. tube. Great for increasing pressure for longer runs, icemakers, wet bars, etc. demand/delivery pumps. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). Internal pressure switch built into the pump. Distinguishing Features Key Operating Benefits: 3-chamber construction .25 to 1.5 GPM (5 LPM) flow Closed impervious diaphragm Up to 130 psi (9 bars) pressure Asymmetrical manifold Adjustable switch and bypass settings Integral switch or bypass Self-priming, auto-purging Highest structural integrity Seven point clamping Highly efficient Engineered composite plastics Minimal pulsations Corrosion resistant metal 7 year design life. Runs dry without damage. Technical Specifications POWER: Depending on flow and pressure, demand varies from 25W to 100W. Comes with a 5' 110 volt AC power cord. MOUNTING: A steel mounting base with four hollow rubber grommets is standard and included at no extra cost. The pump may be mounted in any position. FITTINGS: The 5800 pump is offered with integral John Guest style quick connect push-in fitting for 3/8" OD tube. #5852-7E12-J584. For a more quiet pump we suggest the variable speed DDP-5853 #5853-GE12-V81D. The high quality of the variable speed motor makes this pump our top pick for a water delivery pump. Quiet and pulse free operation. While there is a big price difference to get the variable speed motor, it is a much smoother operating pump.

Aquatec ® Permeate Pump - New Quiet "No Click" operation for 50 GPD and less RO systems. The Aquatec ERP-500 permeate pump is a turbine pump that uses the pressure of the waste water to pump the product drinking water into the storage tank. This protects the membrane from the back flow pressure of the tank, maintaining maximum osmotic pressure at all times. Great for low pressure applications. • Increases product water purity • Increases pressure and flow to the faucet • Saves up to 3/4 of inlet water • Up to 30% more tank pressure • Faster tank refill recovery • Increases filter and membrane life • Requires no electricity • Mounting Clip Supplied. Order the optional auto shut off valve that triggers at 90 percent rather than the standard 66 percent of tank pressure versus incoming line pressure. While the permeate pump works fine with a standard 66 percent auto shut off valve, the 90 percent valve increases storage capacity of the tank and increases initial pressure from the faucet. Will not install on most manifold systems such as Hydtrotech and Water Factory.

Aquatec ® Permeate Pump - The Aquatec ERP-1000 permeate pump is a turbine pump that uses the pressure of the waste water to pump the product drinking water into the storage tank. This protects the membrane from the back flow pressure of the tank, maintaining maximum osmotic pressure at all times. Great for low pressure applications. • Increases product water purity • Increases pressure and flow to the faucet • Saves up to 3/4 of inlet water • Up to 30% more tank pressure • Faster tank refill recovery • Increases filter and membrane life • Requires no electricity • Mounting Clip Supplied. Order the optional auto shut off valve that triggers at 90 percent rather than the standard 66 percent of tank pressure versus incoming line pressure. While the permeate pump works fine with a standard 66 percent auto shut off valve, the 90 percent valve increases storage capacity of the tank and increases initial pressure from the faucet. Will not install on most manifold systems such as Hydtrotech and Water Factory.

Auto Shut Off Valve set to trigger at 90 percent - System automatically shuts off when the tank pressure reaches 90% of the incoming line pressure. ASO ASV Comes with 1/4" OD Tube John Guest Speed Fit quick connectors. Made for use with systems that have a pressure booster pump such as a permeate pump. Adding a pump to a system with a standard auto shut off valve works fine. But changing the auto shut off valve to one that triggers at 90 percent of incoming line pressure will increase the holding capacity of the tank and provide a faster flow rate when dispensing water. • Increases flow and pressure • Increases storage tank capacity • Improves water quality • Extends membrane and diaphragm life • Reduces TDS creep • • • High pressure side is labeled with "In & Out". Low pressure side is labeled with "Tank". Low pressure side in & out correspond to the same orientation as the high pressure side. One side has markings "In" & "Out". The other side of the valve body has 2 markings "Tank". "Tank" is the low pressure side and "In" & "Out" are the high pressure side. Also, the "In" and & "Out" location is the same orientation on both sides. • • • Hydronamic # ASV-ERP-JG ASV-100 Grey body is 90% and ASV-100 white body is 60%. We ship only the grey body 90% valve for the ASV-100.

Aquatec DDP-5800 Variable Speed Delivery Booster Pump #5853-GE12-V81D with 3/8" John Guest quick connectors built in.

Aquatec ® Pump For GE Merlin Reverse Osmosis System - Aquatec engineering has created the perfect pump for the GE merlin RO reverse osmosis system. Make your GE Merlin system live up to its potential with a pressure booster pump. Increases flow and total GPD output. Improves TDS water quality. Pump output pressure is 65 PSI. 4 GPM. #5501-IVN2-V77D - 110V - Straight John Guest pump connection fittings included.

Aquatec 230V Pump For GE Merlin Reverse Osmosis System

Aquatec 1/2" John Guest to 3/4" Quick Disconnect With Buna N O-ring For Merlin Pumps.

Aquatec RV ES Series Aquajet Water Pump For RV Use. 55 Aquajet AES. • Smoother flows without rapid cycling • Automatic adjustment for easier installation • Improved safety features • Greater flows higher pressures • Virtually silent operation.

Aquatec DDP-5800 24 Volt Delivery Booster Pump #5852-7E12-B424 with 3/8" John Guest quick connectors built in.

Aquatec ® PSW 240 & PSW 340 Pressure Switch. Compact High reliability - 100% factory tested - Built-in John Guest connectors - Aquatec's PSW tank pressure sensing electrical switches are intended for in-line mounting as close to the hydropneumatic product water tank as possible. Its purpose is to turn off the Booster Pump when the tank is full. Normally closed switch set for 40 PSI. The PSW, when used with a typical under-counter RO system, enables the hydraulic shut-off valve to open and close very reliably and positively. The PSI trigger point can be adjusted using a 050 Allen Wrench inserted into the small chrome nut in one of the two adjacent circular surfaces on the switch. Simply turn to adjust the actual water PSI shut off point for your system. Counter clockwise will decrease the off pressure of the pump and clockwise will increase the off pressure. To make the pump turn off at a lower pressure setting turn the screw counter clockwise. Set the switch once the system has filled and shut off. Our techs love these. NSF Approved - Flow Through Design (i.e. no Dead Legs) Single Pole, Double Throw Switch. WETTED MATERIALS Polypropylene, Santoprene, EPDM SWITCH RATING: 250 VAC, 15 amp, UL listed. ELECTRICAL CONNECTION: AMP Mate-N-Lok. The PSW Series also includes a modular connector for plug-and-play integration with Aquatec’s other system components. Easy installation and simple to use. Choose either the PSW 240 1/4" or PSW 340 3/8".

Aquatec ® ESO 460 Electronic Inlet Water Shut-Off Valve. Conserves water - Positive shut-off - Compact design - Plastic valve body - Low power - Cool running - Hermetically protected electronics for long life. Polypropylene body. 24 VAC, 50/60 Hz, 150 mA. Jaco connectors. Comes with 21-127 cable for optional connection.

Aquatec ® AFT Auto Flush Kit With Timer. Reduces "brine to product" ratio Improves system "TDS" rejection rate Extends membrane life Hermetically protected electronics for long life One of the challenges addressed by Aquatec's Engineering staff was the development of a device that would assist the R.O. membrane to perform with maximum efficiency for longer time periods. Most designers recommend that a R.O. system be flushed on a regular basis. Aquatec's AFR 600 series Auto-Flush valve provides this flush. In addition, designers can reduce the "brine to product" ratio, especially in low "TDS" applications, while maintaining or improving system "TDS" rejection rate and extending membrane, sediment and carbon filter life. Upon system start-up and every hour thereafter, the 24 VAC normally closed solenoid valve automatically "power-flushes" the membrane at full pump flow, or full line pressure in unboosted systems, for 18 seconds every hour. Turbulent water action scrubs organic and inorganic contaminants from the membrane surface, extending membrane life and efficiency. The "power flush" occurs only while the system is in the water making mode. The flush cycle is reset automatically when the R.O. system repeats the "water making" mode after the "full tank shut-down" mode. Water which has been standing idle in the membrane module for an extended period, is purged to the drain.

Aquatec Power Supply fro CDP-8800 Pump Voltage: 220V TACS 234-48RF

Aquatec ® Power Supply For CDP-6800 Pump.

Aquatec ® Power Supply For CDP-8800 Pump.

Aquatec DDP-5800 LHA for #5852-7E12-J584 replacement diaphragm. Part Number 53-004 for Aquatec Water Pump

Aquatec CDP-6800 LHA for #6850-2J03-B221 replacement diaphragm. Part Number 53-015-00

Aquatec CDP-8800 #LHA for 8851-2J03-B424 replacement water pump diaphragm. Part Number 53-082

aquatec-5800-PS (Aquatec PSW-060 60 psi DDP-5800 replacement pressure switch.)
